ATR300DC2X | Dual Plate Separator Router
National technology with industrial precision for separating electronic boards

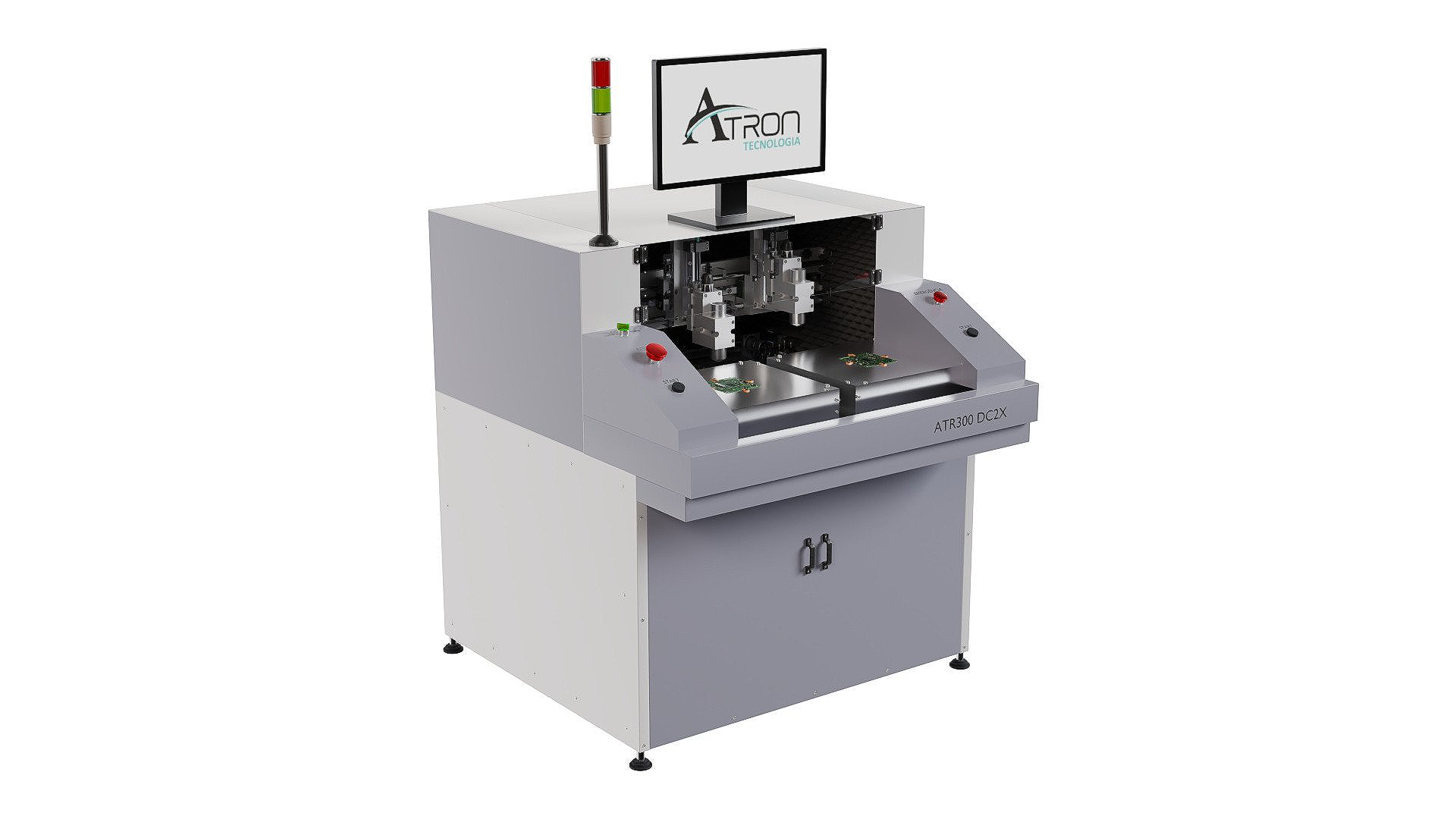

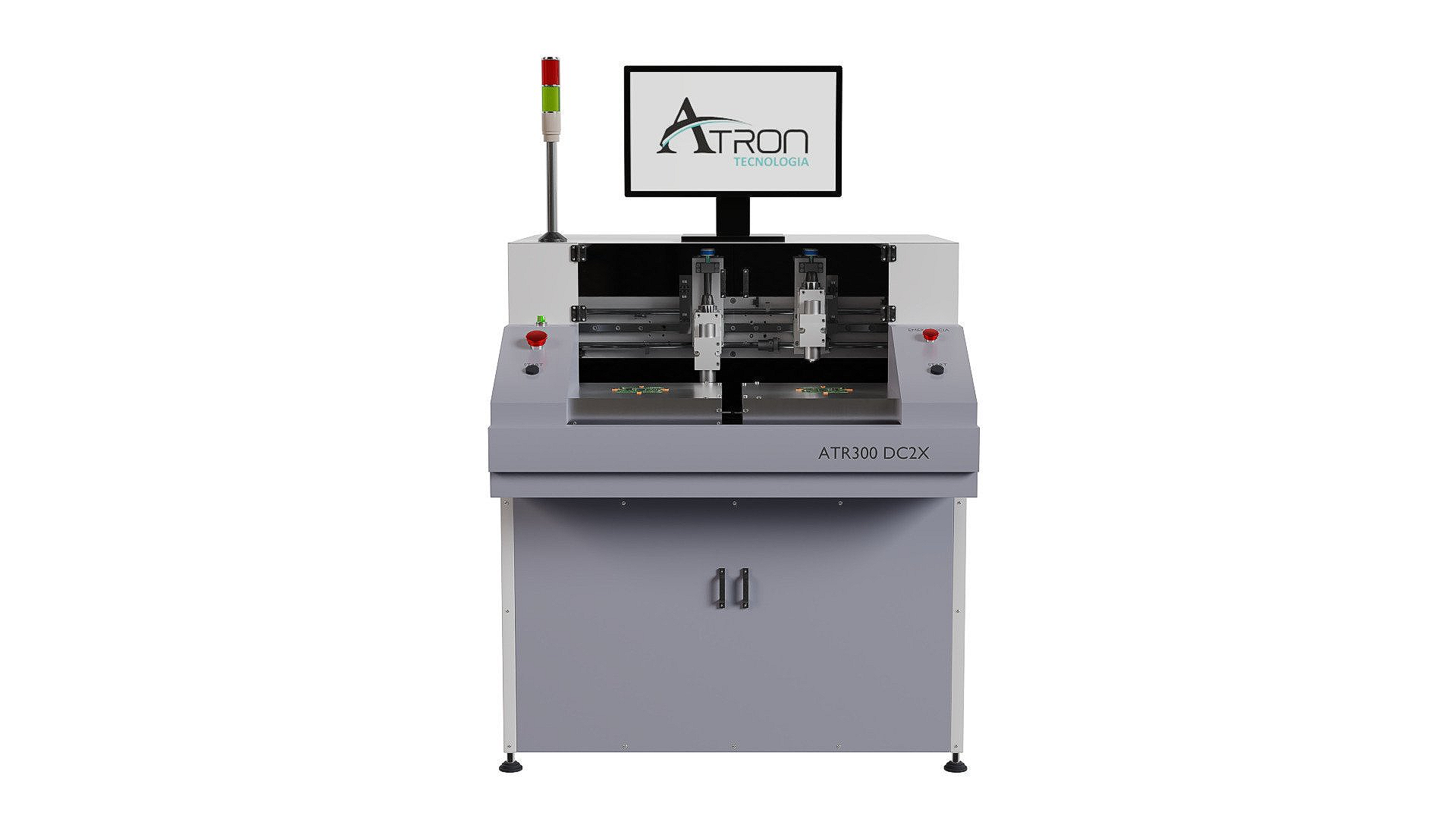

DUAL ROUTER
MODEL: ATR300 DC2X
- Dual plate separator router;
- Indicated for medium and high production;
- High production performance and high process performance;
- National Production.
Description:
It has a hybrid cutting system, using both heads independently, simultaneously and mirrored in the same job. Types of operations:
Independent Mode – Each head in its respective base. Example: (Base A, Head A) (Base B, Head B).
Simultaneous Mode – Both heads operating simultaneously in a single cutting process. Example: (Base A, Head A B).
Hybrid Mode – The equipment monitors, measures time and defines the best cutting cycle time. Example: (Independent Mode Simultaneous Mode).
Features
Meets regulatory standards Nr10 and Nr12
The electrical installation of the equipment meets Nr10;
Application of Nr12:
- Light curtain - protection during operation;
- Emergency pushbutton; • Safety relay for monitoring the light curtain;
ESD system for static control.
ASCE - Atron Axis Control System

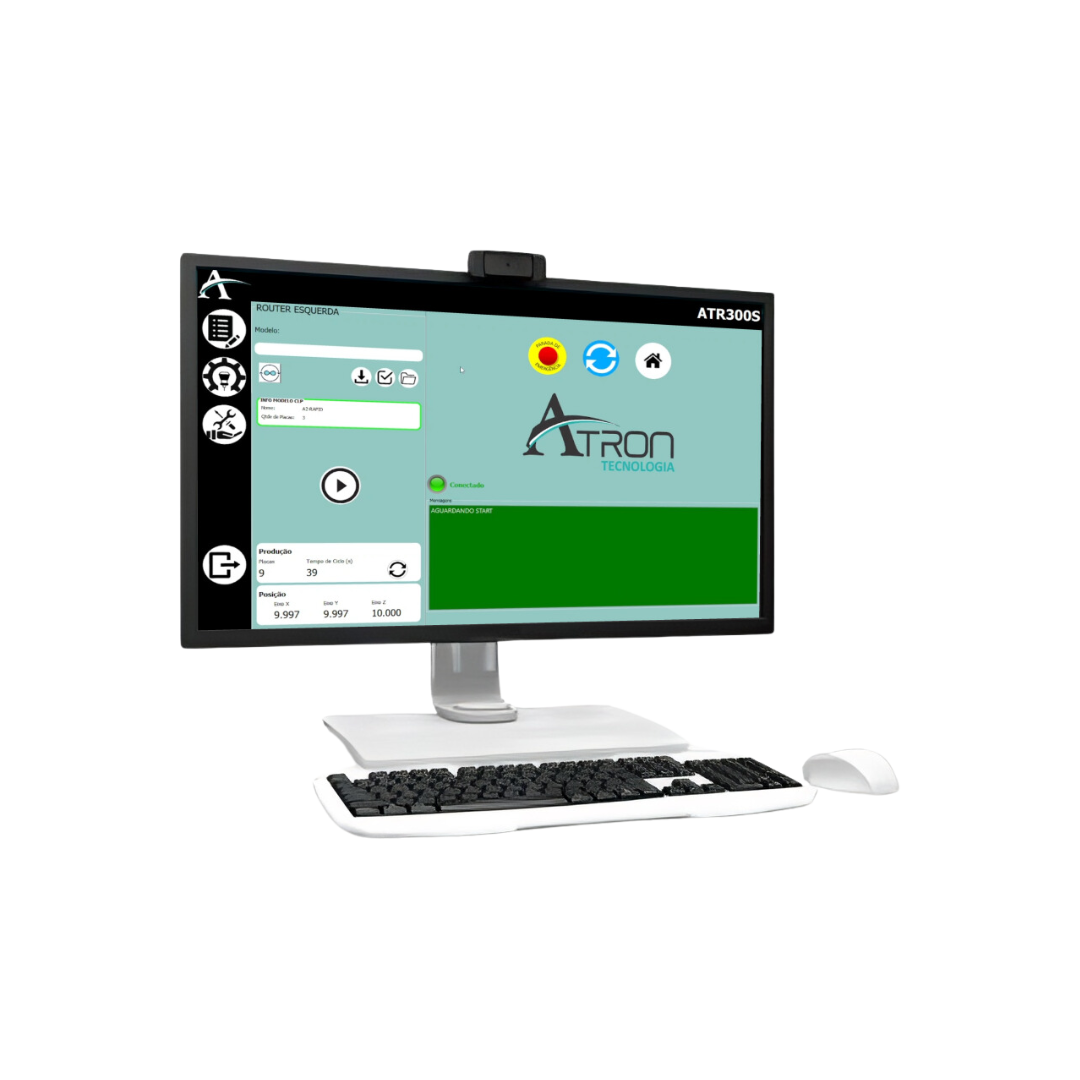

With a user-friendly human-machine interface and a CCD camera, it becomes easy and optimized the programming time of the cutting points. The user can easily define the cutting marking points through the camera and the virtual environment for the points table. The data in the registration form is easily visible and editable.
Datasheet
- Model: ATR300 DC2X
- Dimensions: 1120mm(W) X 1400mm(D) X 1500mm(H)
- Equipment Weight: 300kg
- Heads: 02
- Bases: 02
- Spindle: Electric Air Cooled
- Spindle RPM: 60,000 rpm
- Cutting Area Table 01: 300mm X 300mm
- Cutting Area Table 02: 300mm X 300mm
- Transmission System: Ballscew Spindle
- Transmission System: Linear Guide
- Actuator System: Easy Driver
- Driving Speed (MAX): 300 mm/s
- Cutting Speed (MAX): 50 mm/s
- Cutting Accuracy: ± 0.1 mm
- Positioning Accuracy: ± 0.1 mm
- Repeatability Positioning: ± 0.1mm
- PCB Thickness: 0.5 ~ 2mm
- Component Height: Top Side 15mm/ Bottom Side 45mm
- Control System: Atron PLC-integrated system
- Monitor: 19"
- Exhaust: 2hp Motor
